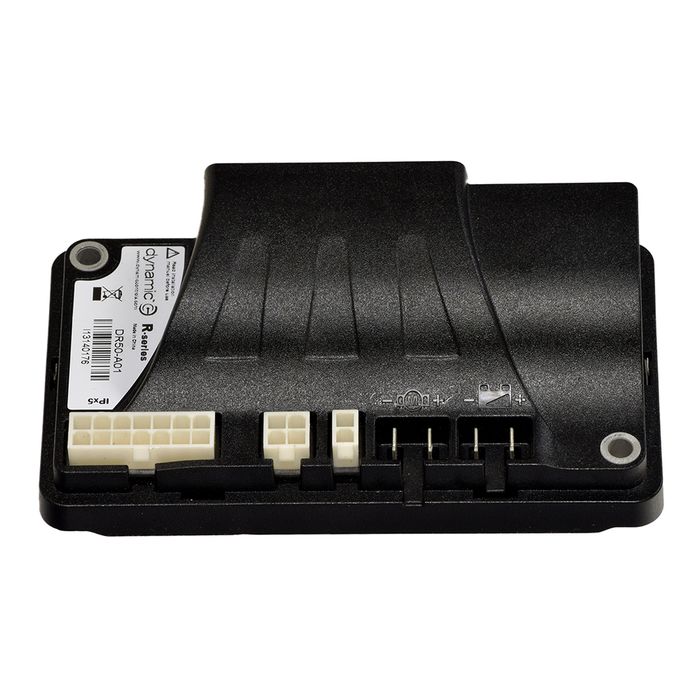

r-series
The r-series from Dynamic Controls is a family of high-quality, cost-effective scooter controllers designed to deliver a refined driving experience. r-series controllers cater to a range of small mobility scooter applications with both 50A and 90A versions. You can be confident in customer satisfaction with trusted and reliable r-series controllers.
Features that matter
Flexible multi-function pins for high configurability
Flexible battery management settings for compatibility with a range of battery types
2 drive profiles with programmable acceleration and deceleration instead of just reduced speed the best drive experience for your users
Park brake release button to enable the tightest packaging for small and light scooters
|
Technical Specifications
|
|||||||
|---|---|---|---|---|---|---|---|
|
Part Number
|
Material
|
Supply Voltage
|
Operating Voltage
|
Peak Current
|
Protection Rating
|
Operating Temperature
|
Storage Temperature
|
|
DR50-A01
|
Die-cast Aluminium base with polymer cover
|
24V DC
|
18-32V DC
|
40 Amps
|
Electronics to IPx5
|
"-25˚C to 50˚C"
|
"-40˚C to 65˚C"
|
|
DR90-A01
|
Die-cast Aluminium base with polymer cover
|
24V DC
|
18-32V DC
|
70 Amps
|
Electronics to IPx5
|
"-25˚C to 50˚C"
|
"-40˚C to 65˚C"
|
Available documents to download
Frequently asked questions
How much current can I get from an r-series controller?
The r-series is available in two versions: 50A and 90A, allowing it to support a wide range of scooter types and user needs.
Can I customise the driving performance?
Yes. The r-series allows for programmable acceleration curves and offers two user-selectable drive profiles for tailored performance.
What safety features are included?
The r-series includes features like zero rollback on slopes, enhanced kerb climbing, controlled hill starts, and increased stability during turns. It also has integrated brake and reverse lights for improved visibility.
